Why You Should Replace the Plastic Diffuser Plate on Your Breville or Sage 58mm Machine

If you own a Breville Oracle, Dual Boiler, Oracle Touch, or Oracle Dual Boiler — or their Sage equivalents in the UK — there's a small plastic part inside your grouphead that's quietly working against your espresso. It's called the diffuser plate, and most people don't know it exists until it cracks, warps, or starts causing extraction problems they can't explain.

This guide covers what the diffuser plate does, why the plastic version fails, and why swapping it for stainless steel is one of the most impactful low-cost upgrades you can make to a 58mm Breville or Sage machine.

What Is the Diffuser Plate?

The diffuser plate sits inside your machine's grouphead, directly behind the shower screen. Its job is to receive pressurised water from the boiler and distribute it evenly across the shower screen before it reaches your coffee puck.

Think of it as the last step in water distribution before extraction begins. If it's working correctly, water fans out evenly and saturates the puck uniformly. If it's warped, cracked, or clogged, water takes the path of least resistance — which means channelling, uneven extraction, and shots that taste sour, bitter, or just inconsistent.

Plastic + Boiling Water + Pressure = A Problem

Here's something worth thinking about: every shot you pull forces near-boiling water through your machine at 9 bars of pressure — directly through a plastic component and into your cup.

Research into microplastics is still evolving, but what's well established is that heat and pressure accelerate the degradation of plastics, and that degraded plastic leaches particles and compounds into whatever liquid passes through it. Espresso machines run at around 90–96°C with significant pressure — conditions that are far from kind to plastic long-term.

Whether you're focused on the performance implications or simply prefer not to have plastic in your brew path at all, the concern is legitimate. Removing it is straightforward. A stainless steel diffuser plate puts an inert, food-safe metal component in its place — nothing leaches, nothing degrades, nothing ends up in your cup.

For a machine that costs $1,000–$2,500 and that you're using to make a drink you care about, it's a reasonable upgrade to make.

Why the Stock Plastic Part Also Fails Mechanically

Beyond the material concern, plastic simply doesn't hold up well in this environment over time:

• Warping — Repeated heat cycles cause the plastic to deform. Even minor warping disrupts the seal and water flow pattern.
• Cracking — The plate can develop hairline cracks that divert water flow and create hot spots across the puck.
• Coffee oil buildup — Plastic is more porous than stainless steel and traps oils more readily, degrading flavour over time even with regular cleaning.
• Inconsistency — As the plastic ages, shot-to-shot consistency drops even when your grind, dose, and tamp stay the same.

Machines a few years old are particularly susceptible. If your shots have become harder to dial in despite no changes to your technique or beans, the diffuser plate is worth inspecting.

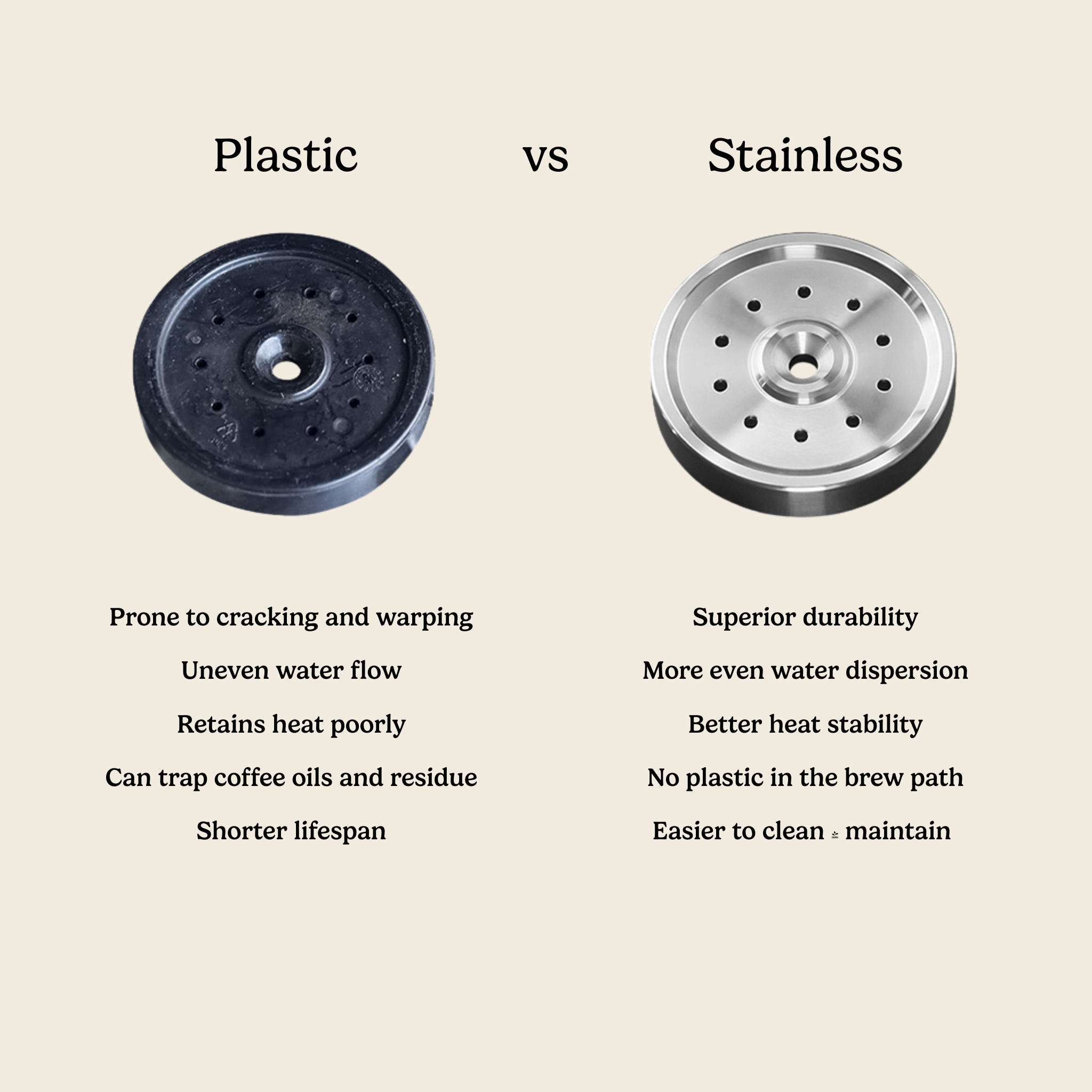

What Stainless Steel Changes

A precision stainless steel replacement solves all of the above. Stainless steel doesn't warp under heat, doesn't crack, doesn't absorb coffee oils, and doesn't degrade into your drink. It maintains its geometry shot after shot, year after year.

The practical difference in the cup:

• More even water distribution across the puck surface
• Reduced channelling — particularly noticeable with lighter roasts
• More consistent shot-to-shot results
• No plastic in the brew path, full stop

Which Machines Does This Apply To?

The plastic diffuser plate is specific to Breville and Sage 58mm group machines. The affected models are:

• Breville / Sage The Dual Boiler (BES920)
• Breville / Sage The Oracle (BES980)
• Breville / Sage The Oracle Touch (BES990)
• Breville / Sage The Oracle Dual Boiler (BES995)

Note: 54mm Breville machines (Barista Express, Barista Pro, Bambino range) have a different internal design — this upgrade doesn't apply to them.

Does It Replace the Shower Screen Too?

No — the diffuser plate is a separate component that sits behind the shower screen. You can replace just the diffuser plate and keep your existing shower screen in place. That said, if you want to go further, our High Diffusion Shower Screen for Breville/Sage 58mm pairs directly with the stainless diffuser plate and upgrades both sides of the water distribution system at once.

How to Install It

No special tools required. The whole job takes under five minutes:

1. Unscrew the centre screw on your shower screen
2. Remove the shower screen and plastic diffuser plate together
3. Clean any residue from the grouphead
4. Place the new stainless steel diffuser plate in position
5. Refit the shower screen on top and screw back in with your existing screw

We recommend doing a backflush after installation before pulling your first shot.

Ready to Upgrade?

The Coffee Nerd Stainless Steel Diffuser Plate is precision-made for Breville and Sage 58mm machines, ships fast from our NSW warehouse, and comes with a 30-day return policy. At $59.95 it's one of the best value upgrades available for these machines — and one of the easiest ways to remove plastic from your brew path entirely.
