54mm Breville Shower Screen Upgrade — Precision Honeycomb Screen & Silicone Gasket

• Breville Barista Express (BES870, BES875)
• Breville Barista Pro (BES878)
• Breville Barista Touch (BES880, BES881)
• Breville Infuser (BES840)
• Breville Bambino (BES450)
• Breville Bambino Plus (BES500)

Why Replace All Three at Once?

When you pull a shot, near-boiling water at 9 bars travels through all three of these components before it ever reaches your coffee. If any one of them is worn, warped, or compromised, your extraction suffers.

Most people upgrade the shower screen - and stop there. But the diffuser plate is sitting right behind it, and the gasket is what holds the whole system under pressure. Replacing one and leaving the others is like changing your oil and ignoring your filter.

This kit makes it simple:

* The precision shower screen distributes water evenly across the puck, reducing channelling and improving flavour clarity
* The stainless diffuser plate replaces the plastic stock component - no more warping, no more oil absorption, no more inconsistent flow
* The fresh group seal restores a proper pressure seal and makes locking in your portafilter feel like new again

The result is a grouphead that performs like it should - clean water flow, stable pressure, and more consistent extraction from shot to shot.

KEY SPECS

Material: Stainless steel screen, silicone gasket

Size: 54mm

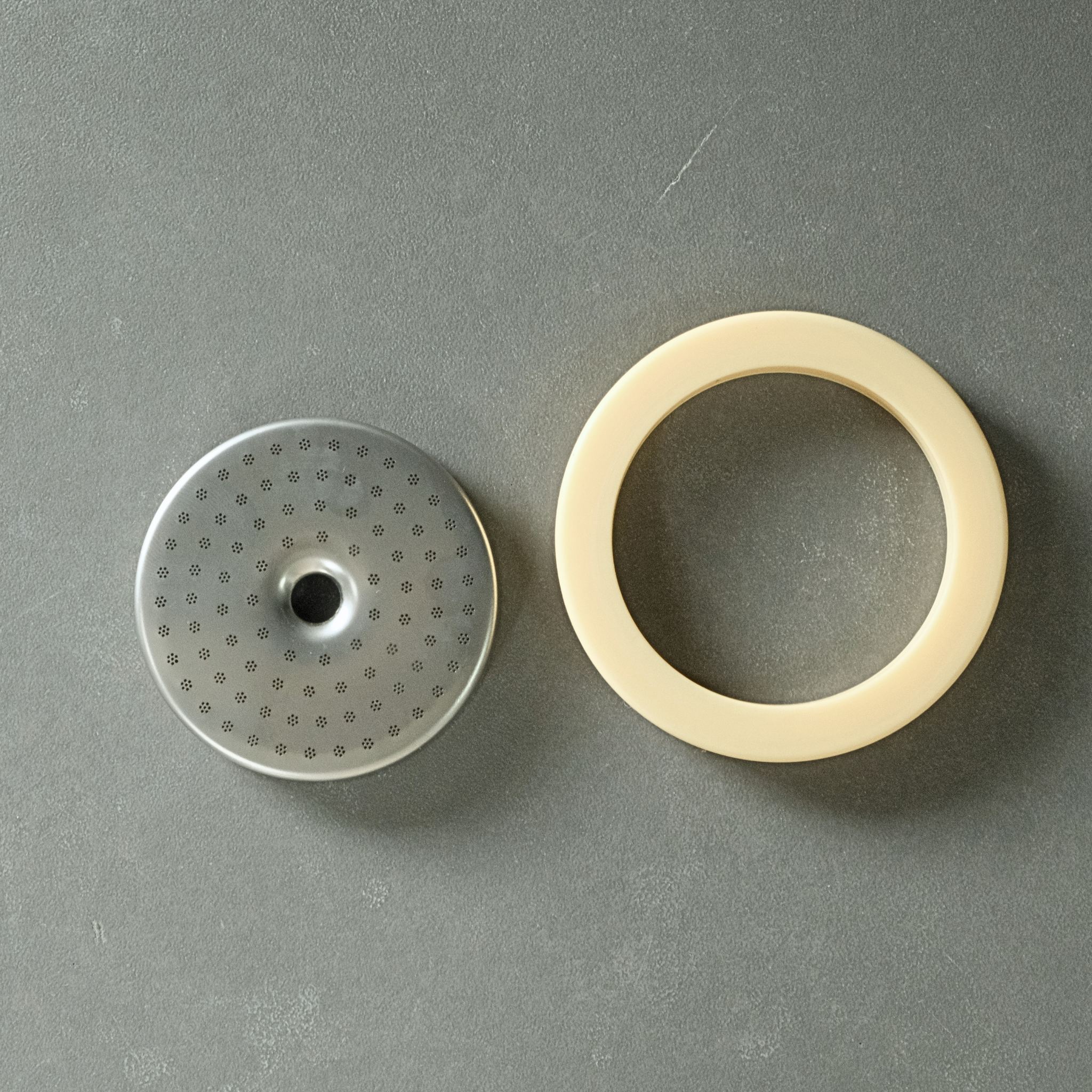

Includes: Precision honeycomb shower screen + group head gasket

Perforation: Finely engineered honeycomb-cluster pattern for even water dispersion

Compatible with: Breville / Sage 54mm machines

MORE INFO

Every part of your espresso routine: grind, dose, distribution and tamp - is pointless if. the water passing through is uneven. The shower screen is the final step in that chain, and it's the one most people never touch. Its job is to take the water arriving from the group head and disperse it evenly across the whole surface of the puck before it soaks in.

The stock Breville screen does this with a small number of wide holes. That tends to concentrate water in the centre and leave the edges under-saturated, which encourages channelling - water finding the path of least resistance instead of flowing evenly through the bed. Even a perfectly level, well-tamped puck can be let down at this last stage.

The precision honeycomb screen spreads the same water through a much denser, more even pattern of fine perforations. Water arrives across the full diameter of the puck at once, so the whole bed wets and extracts at the same rate. The result shows up in the cup: more even flow, better clarity, and more consistent shots pull to pull.

There's a second reason to do this job now. The group head gasket - the seal your portafilter locks into - hardens and shrinks over time. A worn gasket makes the portafilter sit looser, harder to lock in, and prone to leaking around the edges. Since you have to remove the screen to replace the gasket anyway, we include a fresh silicone one so you refresh both in a single go.

Fitting takes about two minutes. The screen is held in place by a single central screw - back it out, lift off the old screen, drop the old gasket, seat the new gasket and screen, and screw it back in. No special tools beyond a screwdriver.

Machine compatibility

54mm suits: Breville Barista Express (BES870), Barista Pro (BES878), Barista Touch (BES880, BES881), Barista Touch Impress (BES881), and Bambino Plus (BES500).

Not sure whether your machine takes a 54mm screen? Get in touch and we'll confirm it for you.

What does a shower screen do?

It's the disc at the base of your group head that disperses water over the coffee before extraction. Its job is to spread water evenly across the whole puck rather than letting it hit one spot. A better dispersion pattern means more even saturation, which means more even extraction.

Why upgrade from the stock Breville screen?

The factory screen uses a small number of wide holes, which tends to concentrate water in the centre of the puck and under-saturate the edges. The precision honeycomb pattern uses a much denser field of fine perforations, so water reaches the full surface of the puck evenly. It's one of the cheapest upgrades you can make to a Breville, and it directly targets even extraction.

Why does it come with a gasket?

The group head gasket is the seal your portafilter locks into, and it hardens and shrinks with age - causing a loose fit and leaks. You have to remove the shower screen to reach it, so replacing both at once just makes sense. Fitting the new gasket while you're in there saves you a second job later.

How do I install it?

The screen is held in by a single central screw. Back it out with a screwdriver, lift off the old screen and gasket, seat the new gasket and screen, and screw it back in. It takes about two minutes.

Will it fit my machine?

It fits Breville and Sage machines with a 54mm group head - including the Barista Express, Barista Pro, Barista Touch, Barista Touch Impress, and Bambino Plus. If you're not sure whether your model takes a 54mm screen, get in touch and we'll confirm.

How often should I replace it?

Give the screen a backflush regularly to keep it clear. Most people replace the screen and gasket every 6–12 months depending on how much coffee they make, or sooner if you notice leaks around the portafilter or uneven flow.
