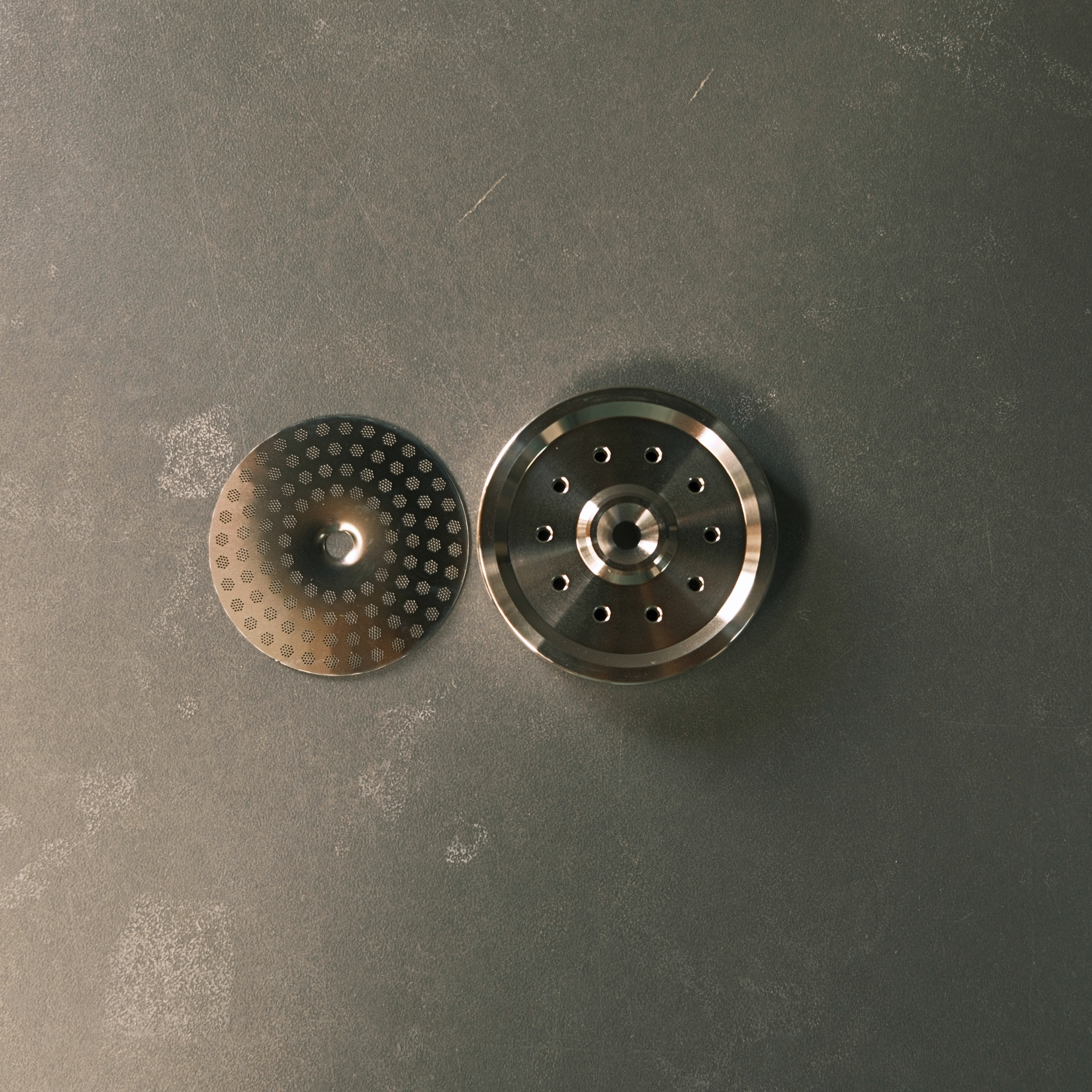

58mm Grouphead Upgrade Kit - Precision Shower Screen, Stainless Diffuser Plate and Gasket

• Breville The Dual Boiler (BES920)
• Breville The Oracle (BES980)
• Breville The Oracle Touch (BES990)
• Breville The Oracle Dual Boiler (BES995)
• Breville The Oracle Jet (BES985)

Why Replace All Three at Once?

When you pull a shot, near-boiling water at 9 bars travels through all three of these components before it ever reaches your coffee. If any one of them is worn, warped, or compromised, your extraction suffers.

Most people upgrade the shower screen - and stop there. But the diffuser plate is sitting right behind it, and the gasket is what holds the whole system under pressure. Replacing one and leaving the others is like changing your oil and ignoring your filter.

This kit makes it simple:

* The precision shower screen distributes water evenly across the puck, reducing channelling and improving flavour clarity
* The stainless diffuser plate replaces the plastic stock component - no more warping, no more oil absorption, no more inconsistent flow
* The fresh group seal restores a proper pressure seal and makes locking in your portafilter feel like new again

The result is a grouphead that performs like it should - clean water flow, stable pressure, and more consistent extraction from shot to shot.

Designed for Consistency

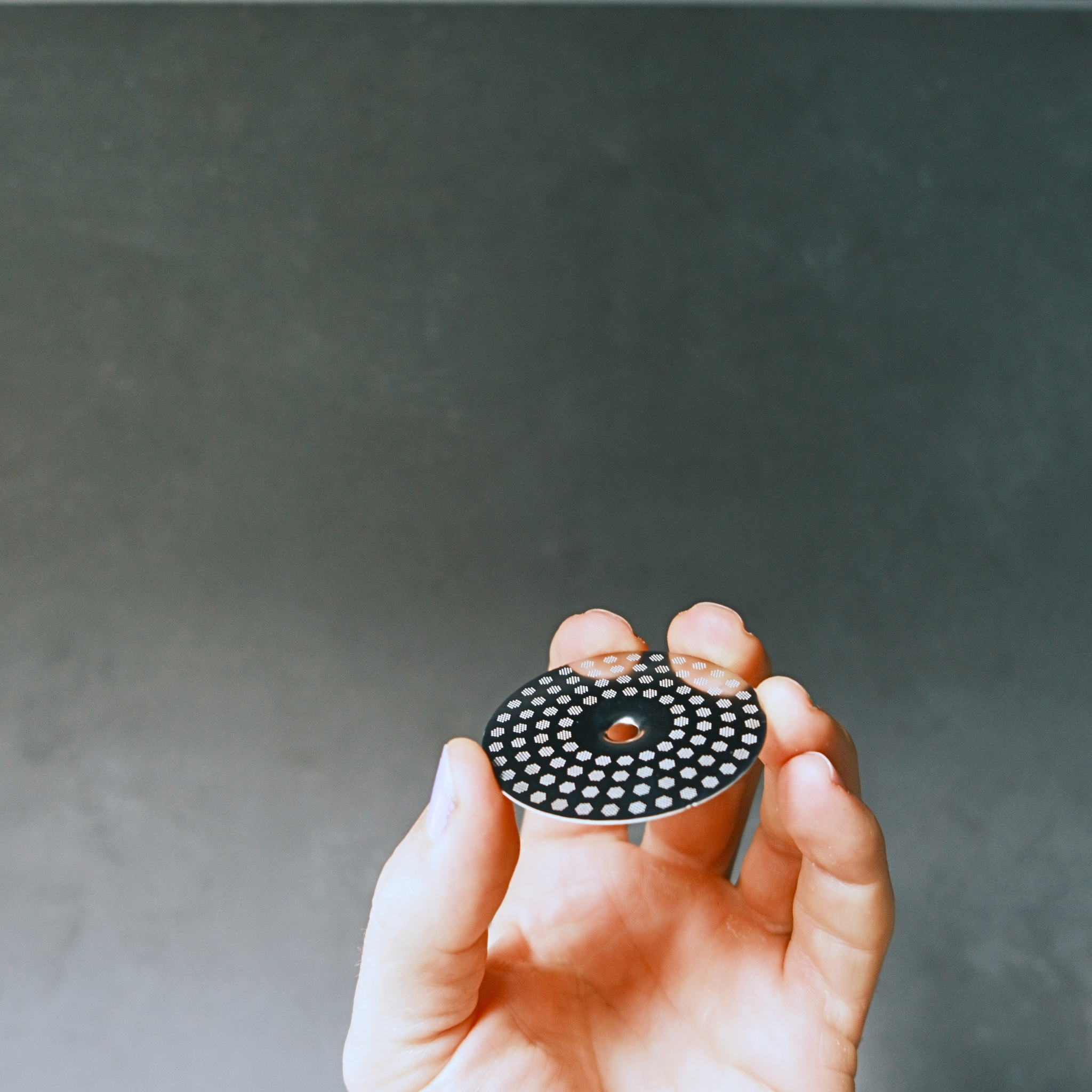

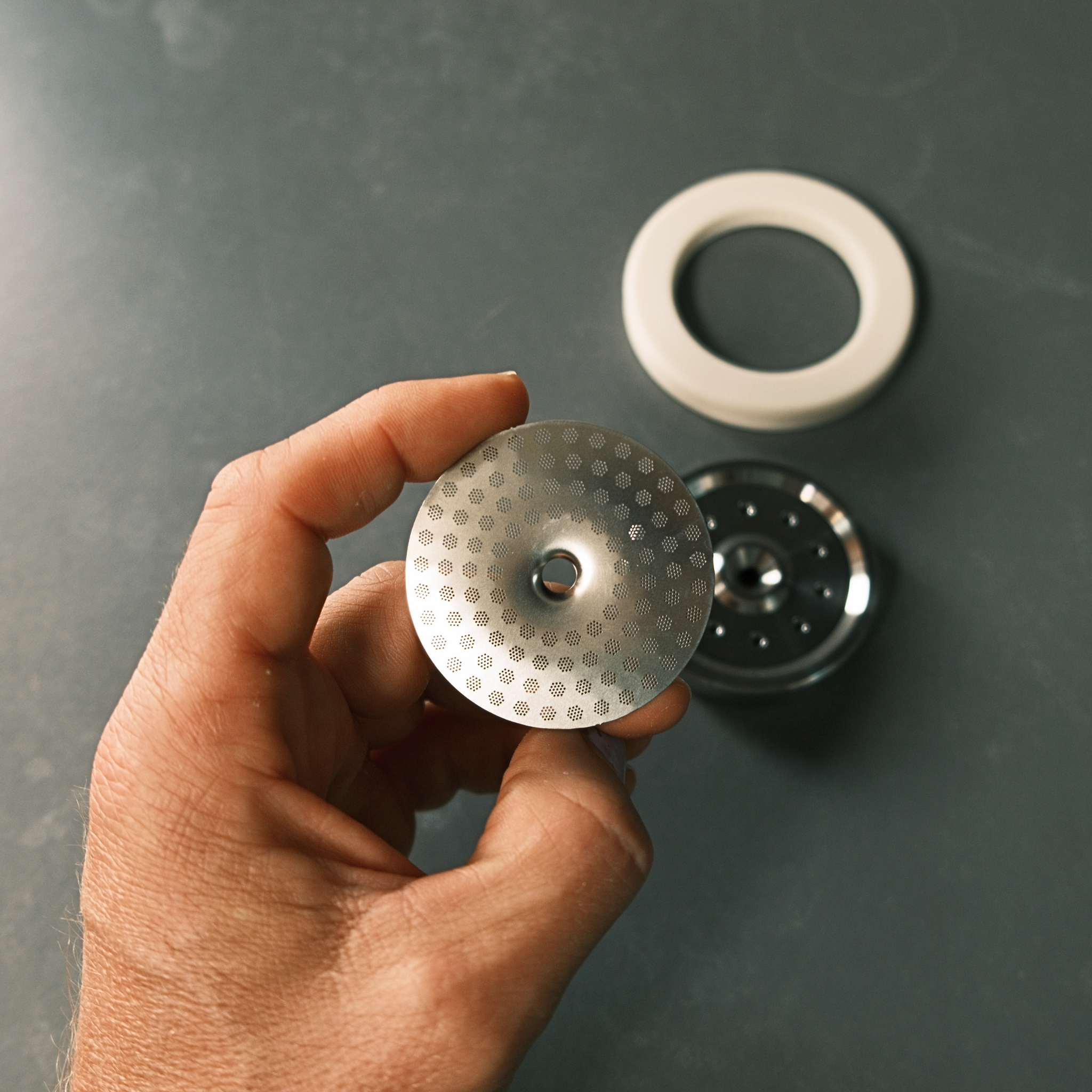

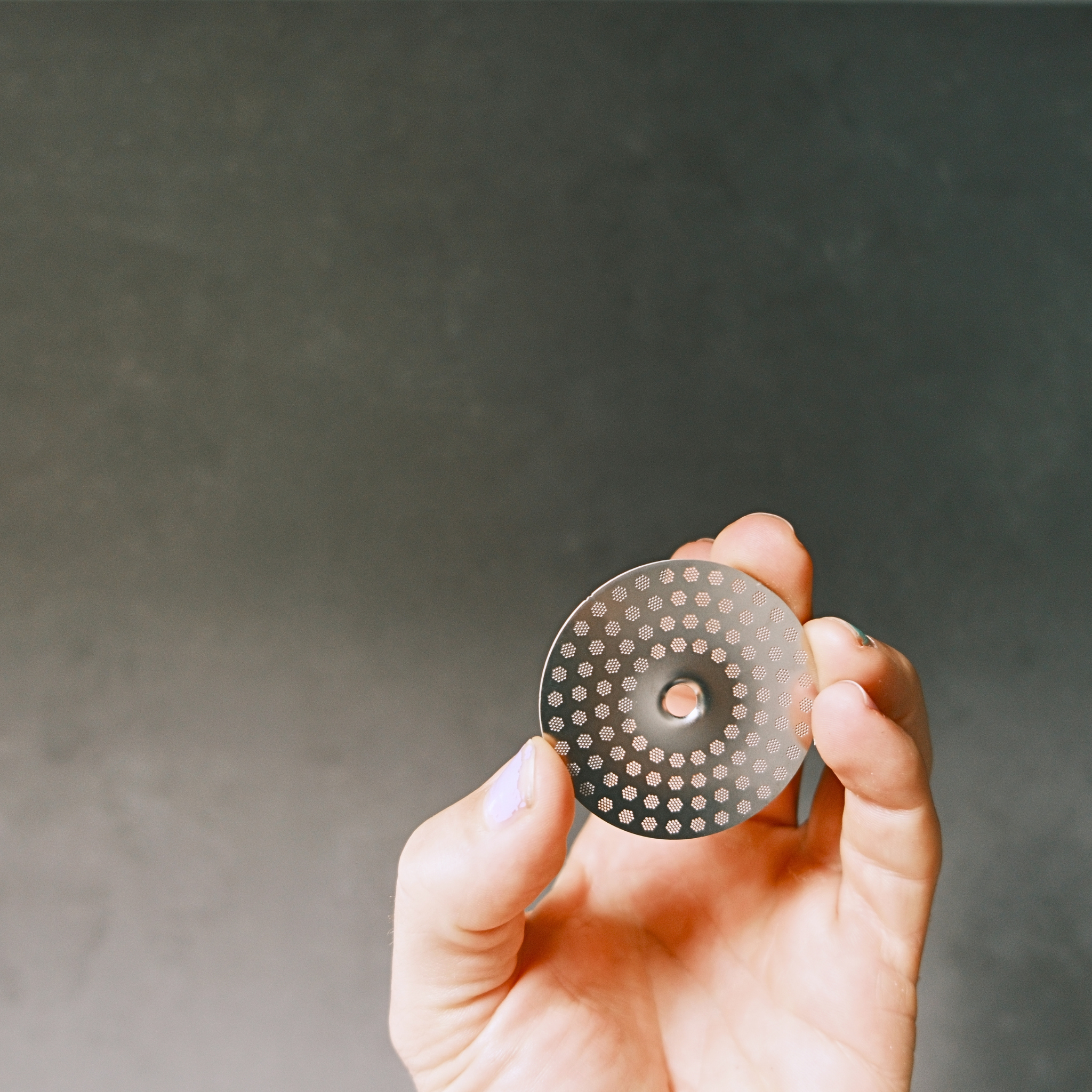

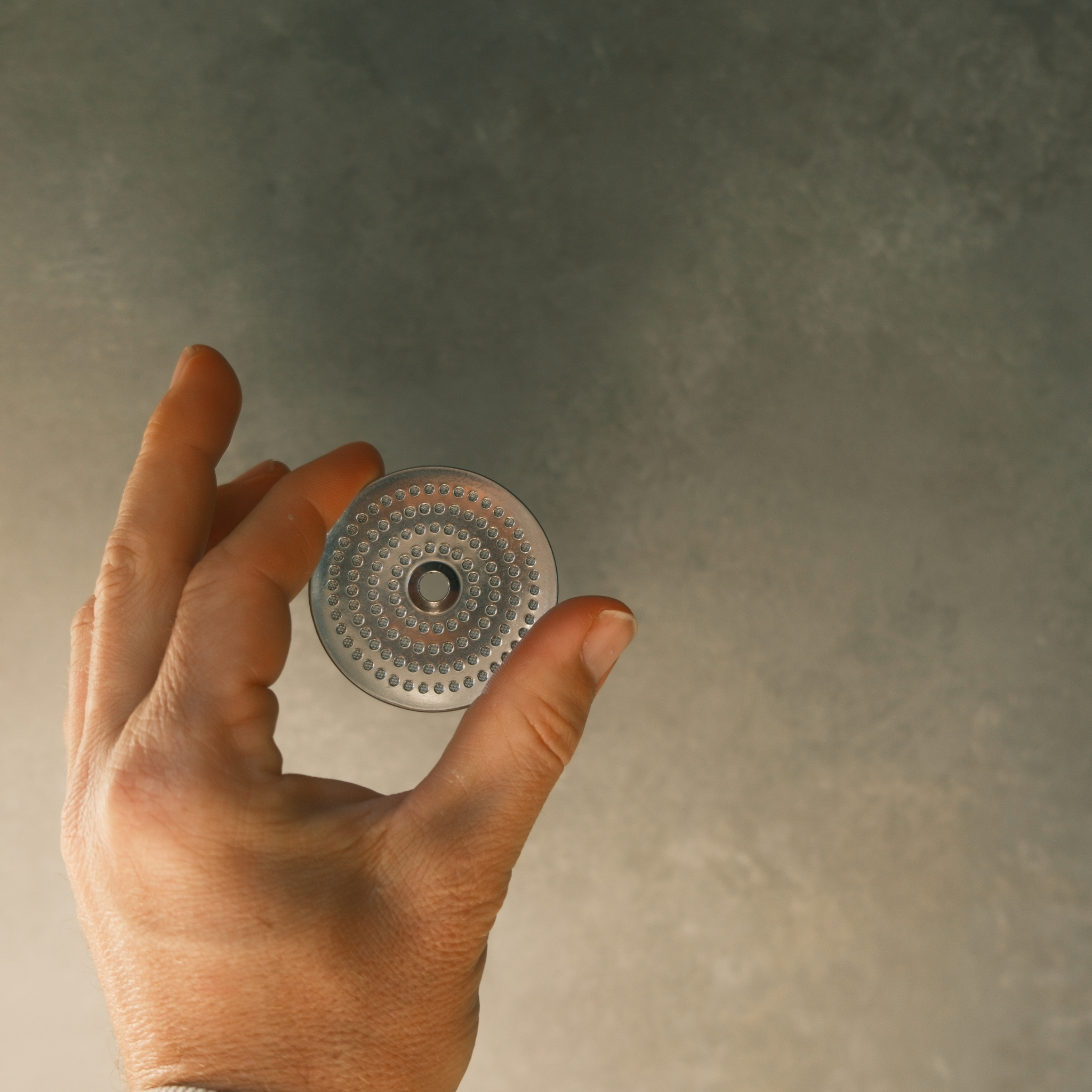

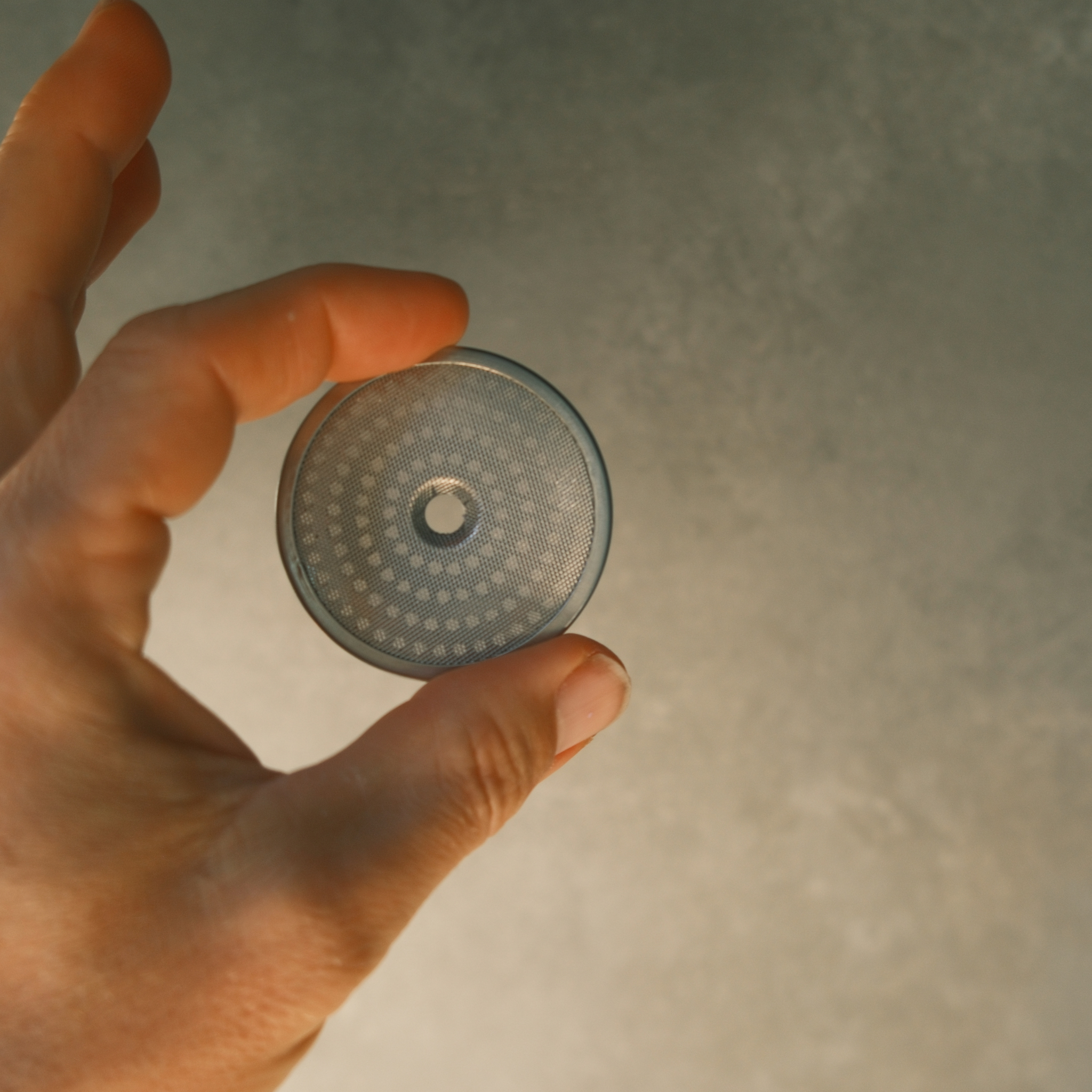

The honeycomb pattern on the precision shower screen isn't decorative - it's engineered. The closely-spaced hexagonal micro-holes distribute water across a wider surface area than a standard stamped screen, saturating the puck more evenly from the first moment water makes contact.

Pair that with a stainless diffuser plate (which spreads water pressure before it even reaches the screen) and you've replaced both sides of the water distribution system at once.

Premium Materials

All three components are built to last in a high-heat, high-pressure environment:

• Shower screen: stainless steel with precision-engineered honeycomb perforation pattern
• Diffuser plate: solid stainless steel - no plastic, no degradation, nothing leaching into your brew path
• Group seal/gasket: food-safe silicone, rated for the temperature and pressure demands of an espresso machine

Who This Kit Is For

• Breville Oracle, Dual Boiler, or Oracle Touch owners who want to do a proper grouphead refresh
• Anyone who's already replacing the diffuser plate and wants to do the full job while they're in there
• Home baristas chasing cleaner, more consistent extractions
• Anyone who prefers to keep plastic out of their brew path entirely

Compatibility

Designed for Breville and Sage 58mm machines, including:

• Breville Dual Boiler (BES920)
• Breville Oracle (BES980)
• Breville Oracle Touch (BES990)
• Breville Oracle Jet (BES985)
• Sage equivalents of the above

❌ Not compatible with Breville 54mm machines (Barista Express, Barista Pro, Bambino range)

Also available separately: Stainless Steel Diffuser Plate only →

Installation

1. Remove the grouphead screw and stock shower screen
2. Remove the plastic diffuser plate behind it
3. Peel out the old group seal from the grouphead recess
4. Press the new silicone gasket into place
5. Seat the stainless diffuser plate (indent facing away from the screen)
6. Fit the new precision shower screen and reinstall with your existing screw
7. Run a backflush before pulling your first shot

Tools required: 4mm allen key

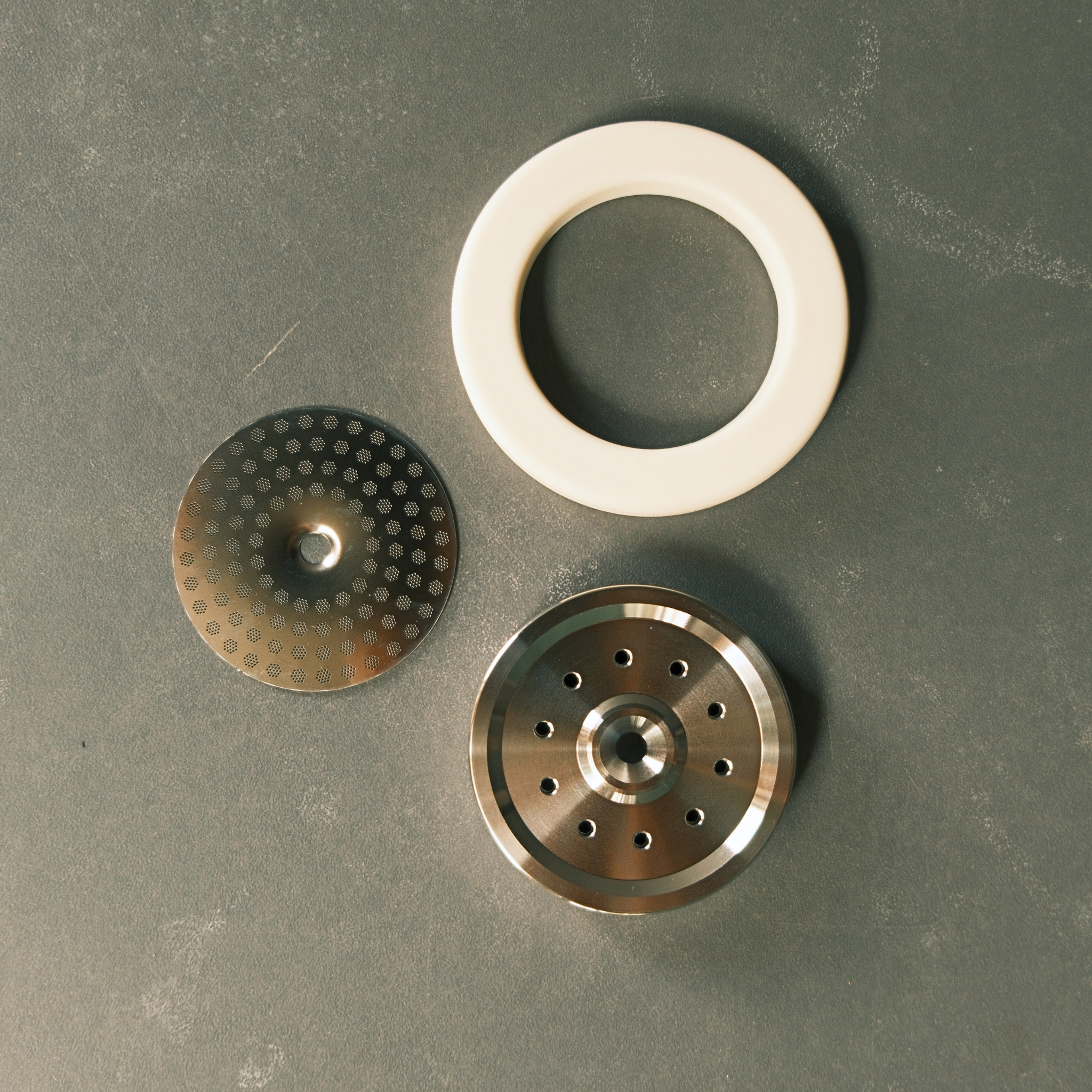

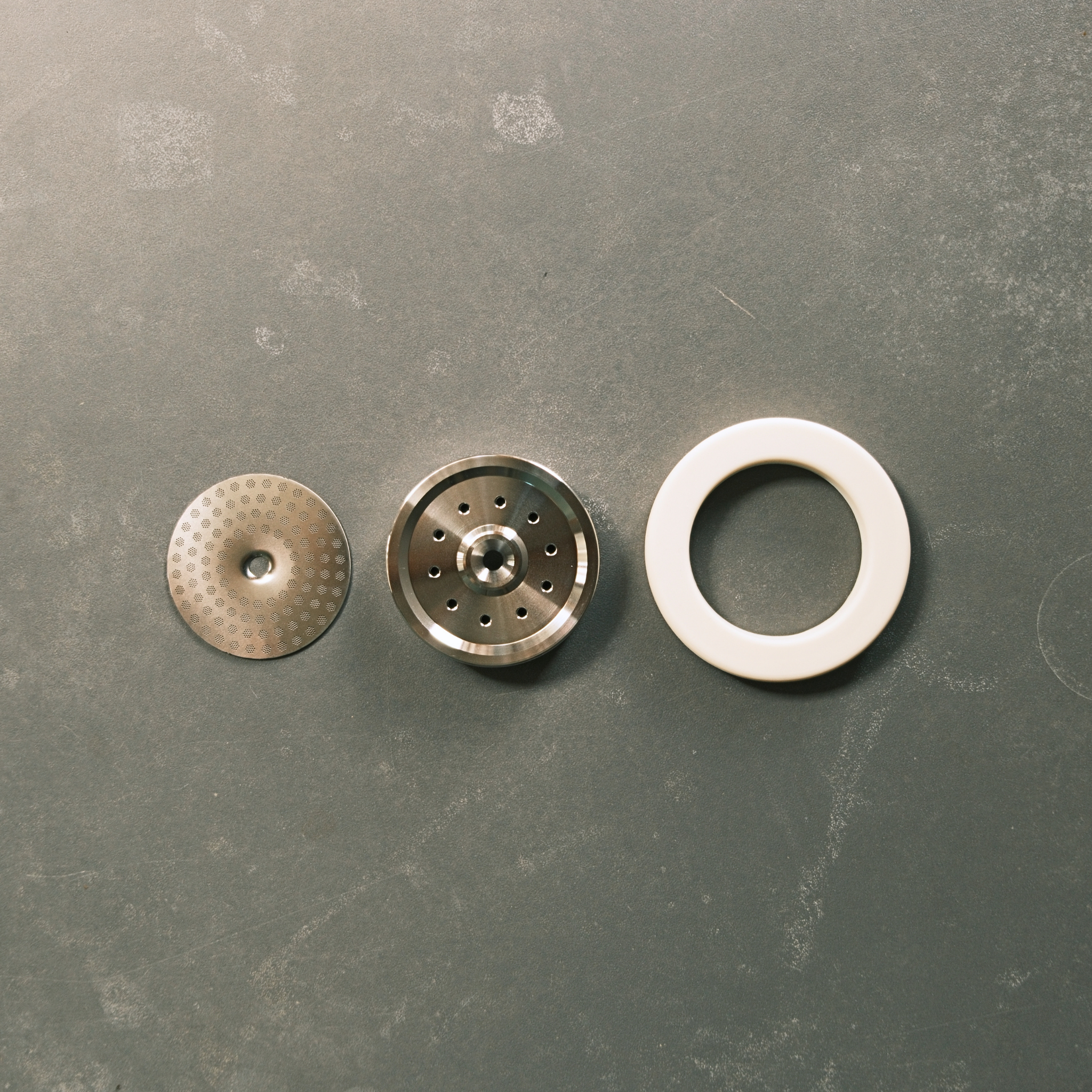

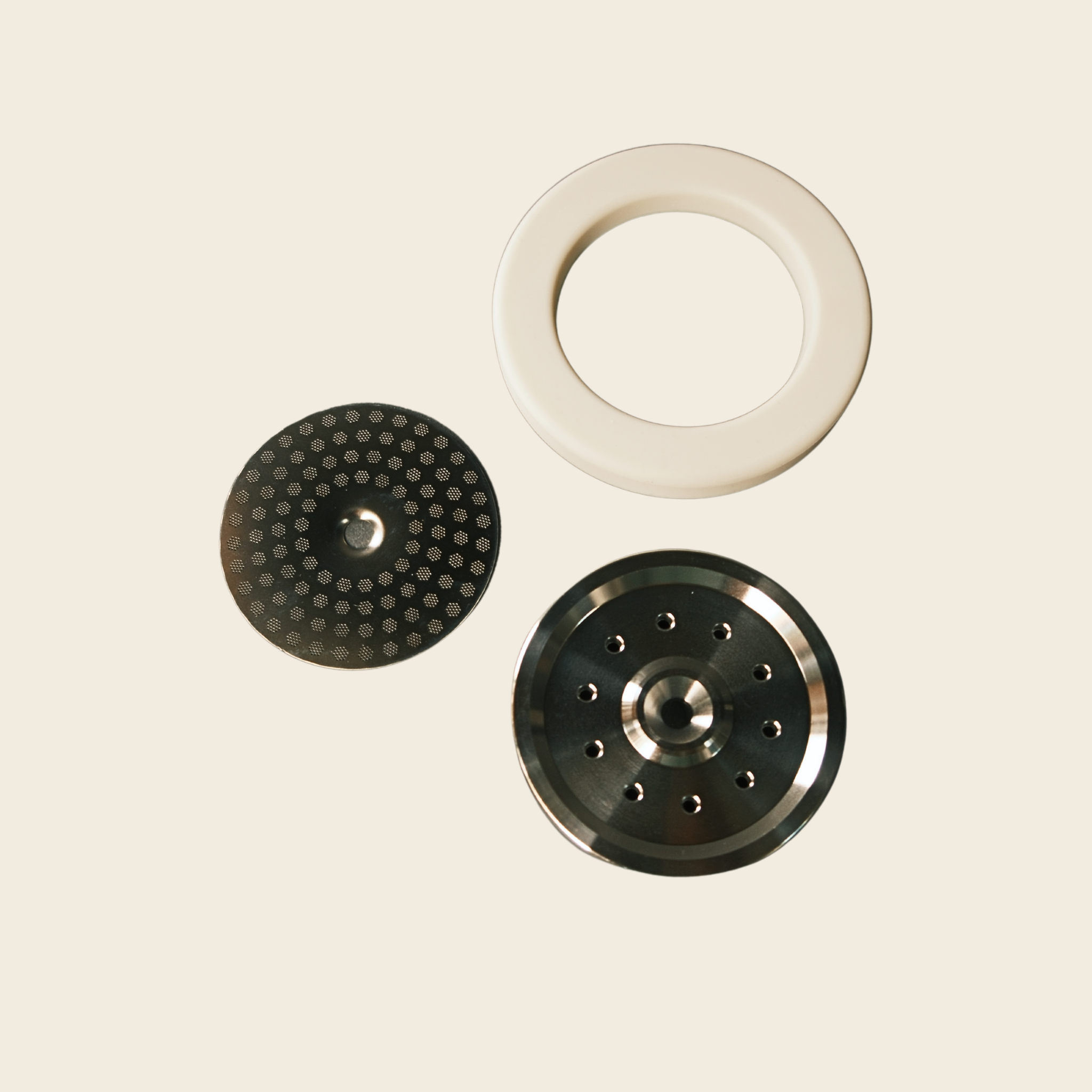

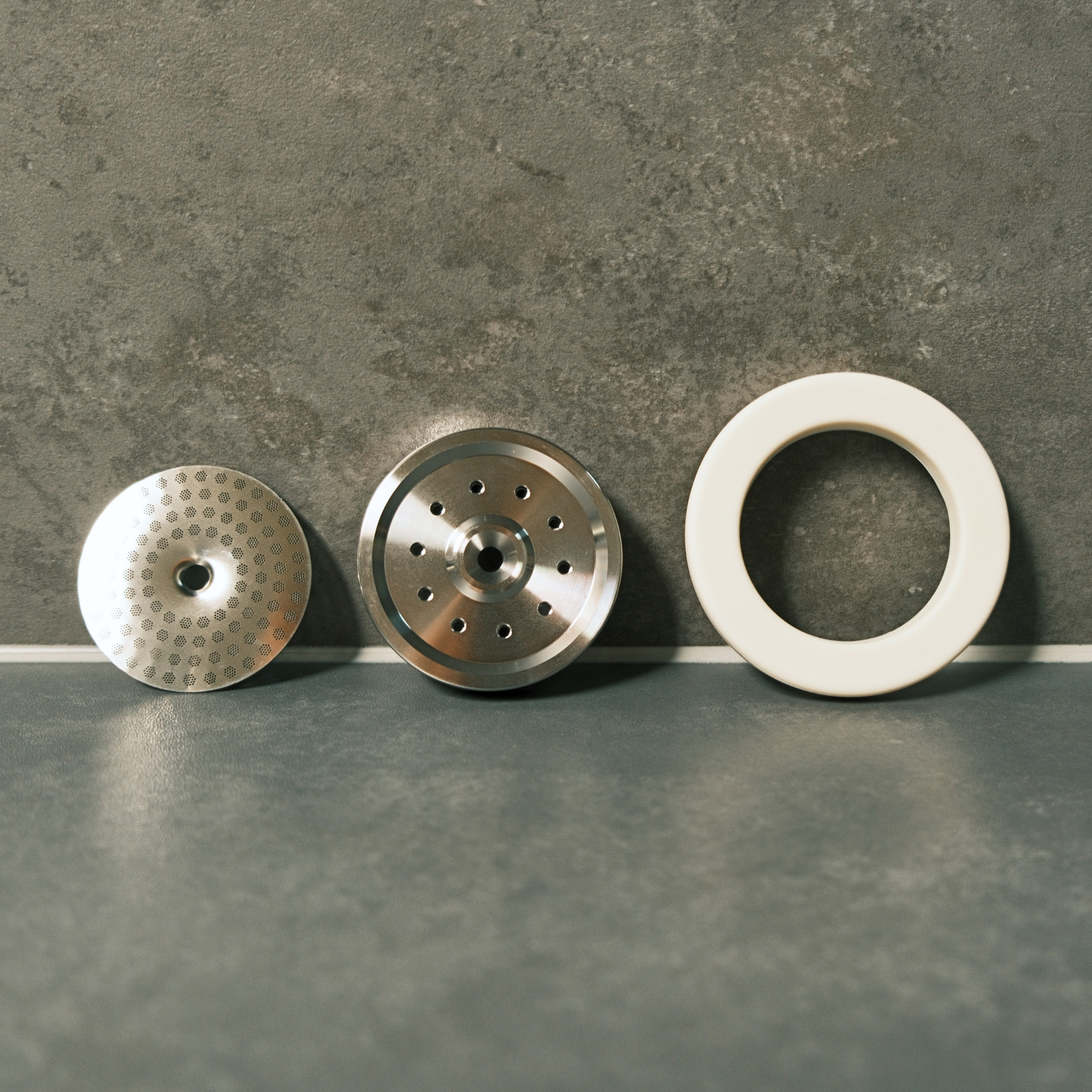

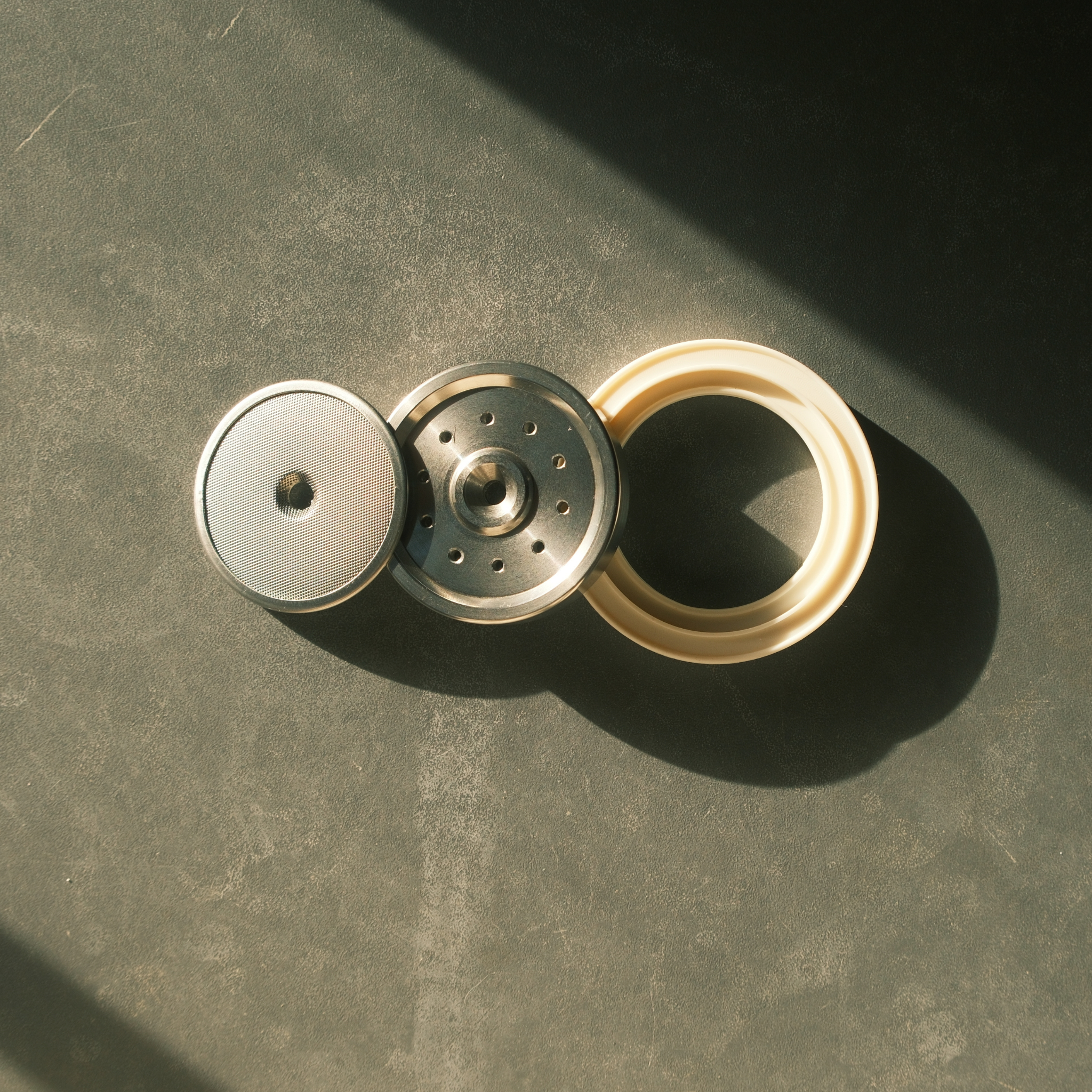

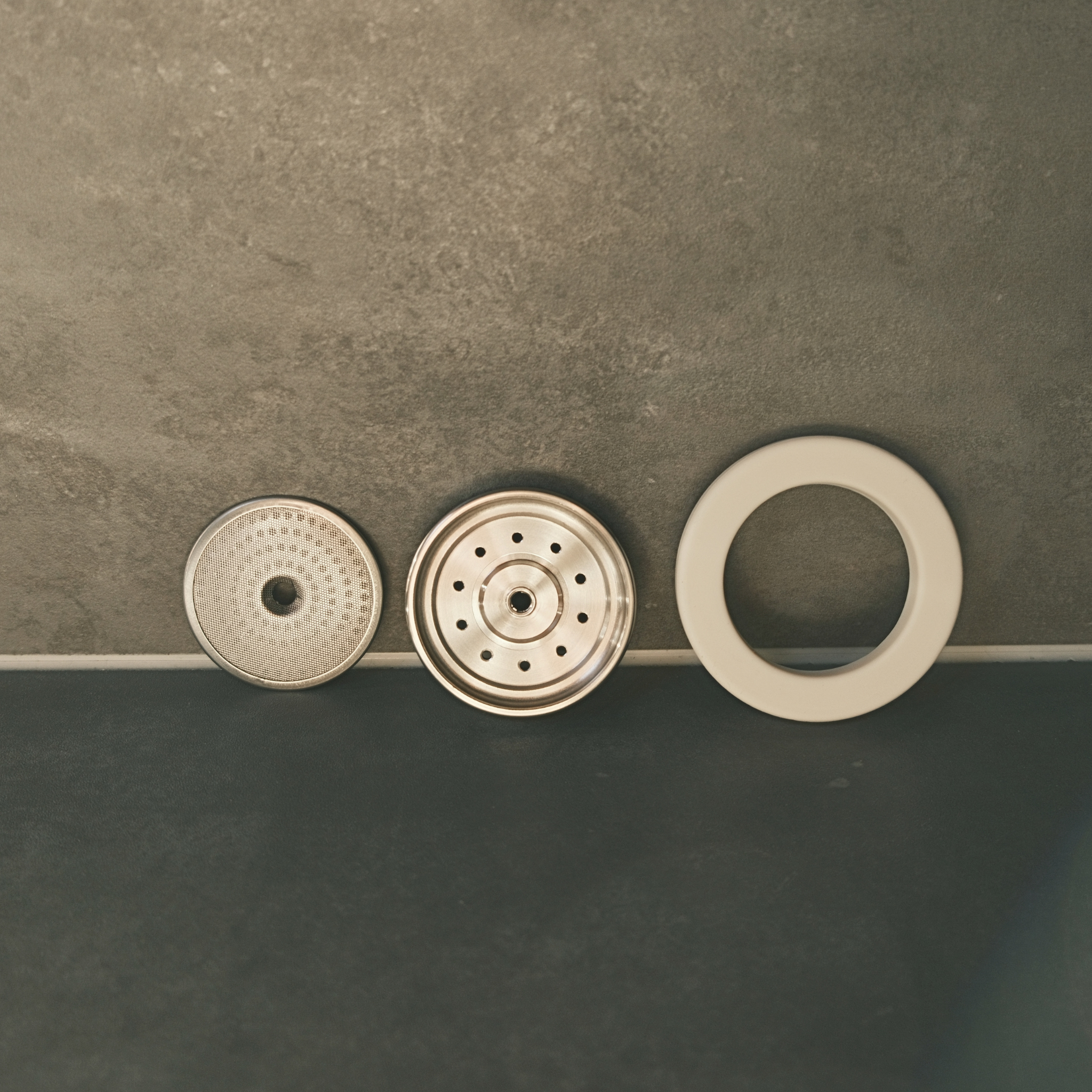

What's Included

• 1 × 58mm Precision Honeycomb Shower Screen
• 1 × Stainless Steel Diffuser Plate
• 1 × Silicone Group Seal / Gasket

Specifications

• Machine Compatibility: Breville / Sage 58mm grouphead
• Shower Screen Material: Stainless steel
• Diffuser Plate Material: Stainless steel
• Gasket Material: Food-safe silicone
• Install Time: 5 minutes
• Tools Required: 4mm allen key

What's included in this kit?

The kit includes three components: a precision honeycomb shower screen, a stainless steel diffuser plate, and a silicone group seal/gasket. Together they replace every part of your grouphead's water distribution system in one install.

Which machines is this compatible with?
It's designed for Breville and Sage 58mm machines - specifically the Dual Boiler (BES920), Oracle (BES980), Oracle Touch (BES990), and Oracle Jet (BES985). It is not compatible with Breville 54mm machines such as the Barista Express, Barista Pro, or Bambino range.

Do I need special tools to install it?
No. A 4mm allen key is all you need. The full install takes around 5–10 minutes.

Can I just replace the diffuser plate on its own?
Yes - we sell the stainless steel diffuser plate separately if that's all you need. The kit is designed for anyone doing a full grouphead refresh - particularly if the machine hasn't been serviced in a while and you'd rather replace everything at once while it's already apart.

How is this different from the Pesado High Diffusion shower screen kit?

Both kits replace the shower screen and diffuser plate on Breville 58mm machines. The Pesado uses a proprietary channelled design with 18 targeted flow paths. Our kit uses a precision honeycomb perforation pattern and comes in at a lower price point - a strong option if you want a complete grouphead upgrade without paying a premium for a branded screen.

Why does the gasket need replacing?

Over time, group seals harden, compress, and lose their ability to hold a proper pressure seal. A worn gasket can make your portafilter feel loose to lock in, cause pressure inconsistencies during extraction, and in some cases allow water to bypass the seal entirely. Since you're already removing the grouphead components to replace the screen and diffuser plate, swapping the gasket at the same time adds minimal effort and ensures everything is working as it should.

Will this fix channelling in my espresso?

It can help significantly - especially if your stock plastic diffuser plate is warped or if the original shower screen has uneven flow. That said, channelling has multiple causes including grind distribution, tamping technique, and basket condition. This kit improves the machine-side water distribution, which is one of the most common and overlooked contributors to uneven extraction.

Do I use my existing grouphead screw?

Yes. Your existing centre screw is reused to secure the new shower screen in place. No replacement hardware is needed.

How often should I replace these components?
The shower screen and diffuser plate are built to last and don't need regular replacement - upgrading once is typically all you need. The group seal is a wear item and most people replace it every 1–2 years depending on usage. Running this kit as part of a full grouphead service is a good habit if you're pulling shots daily.
